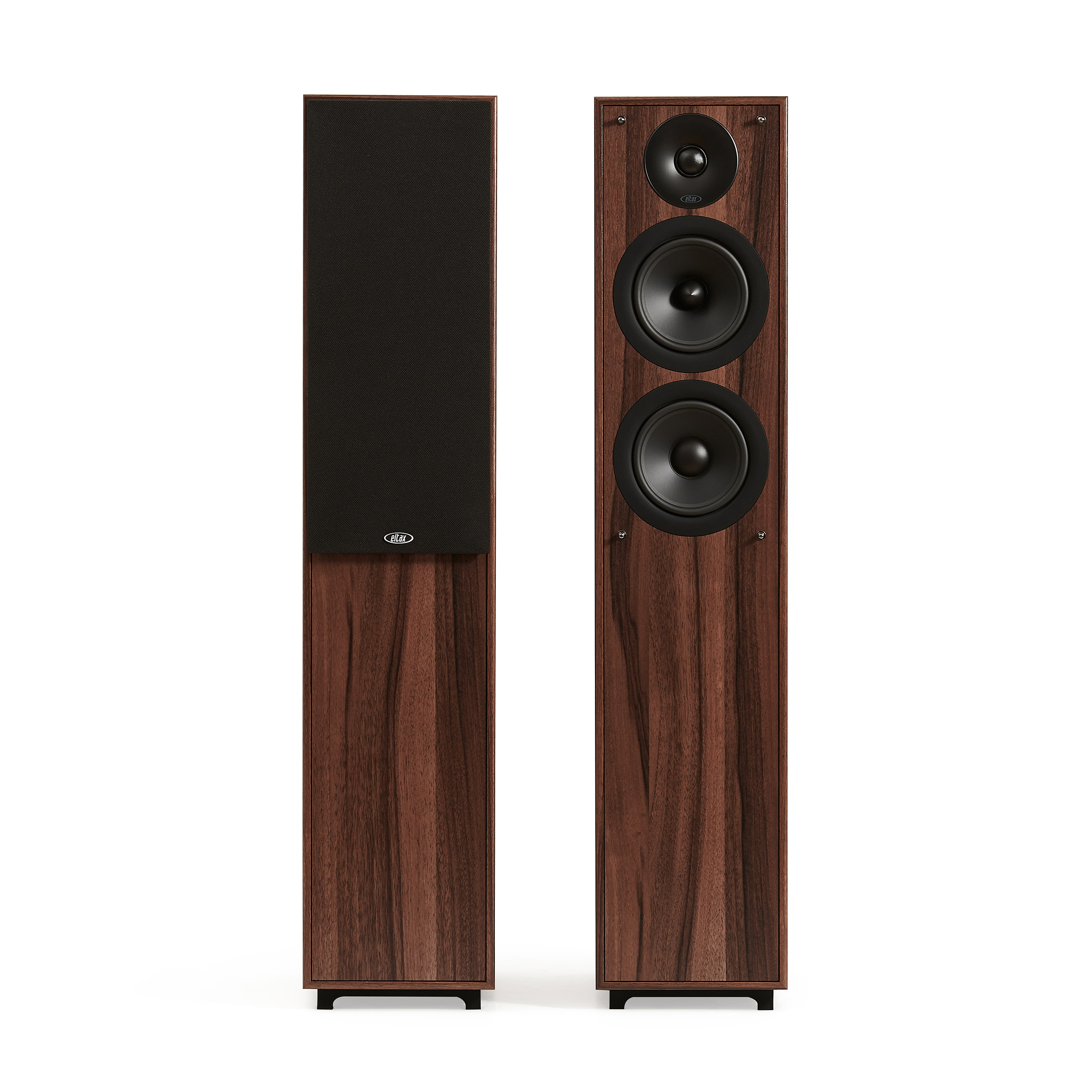

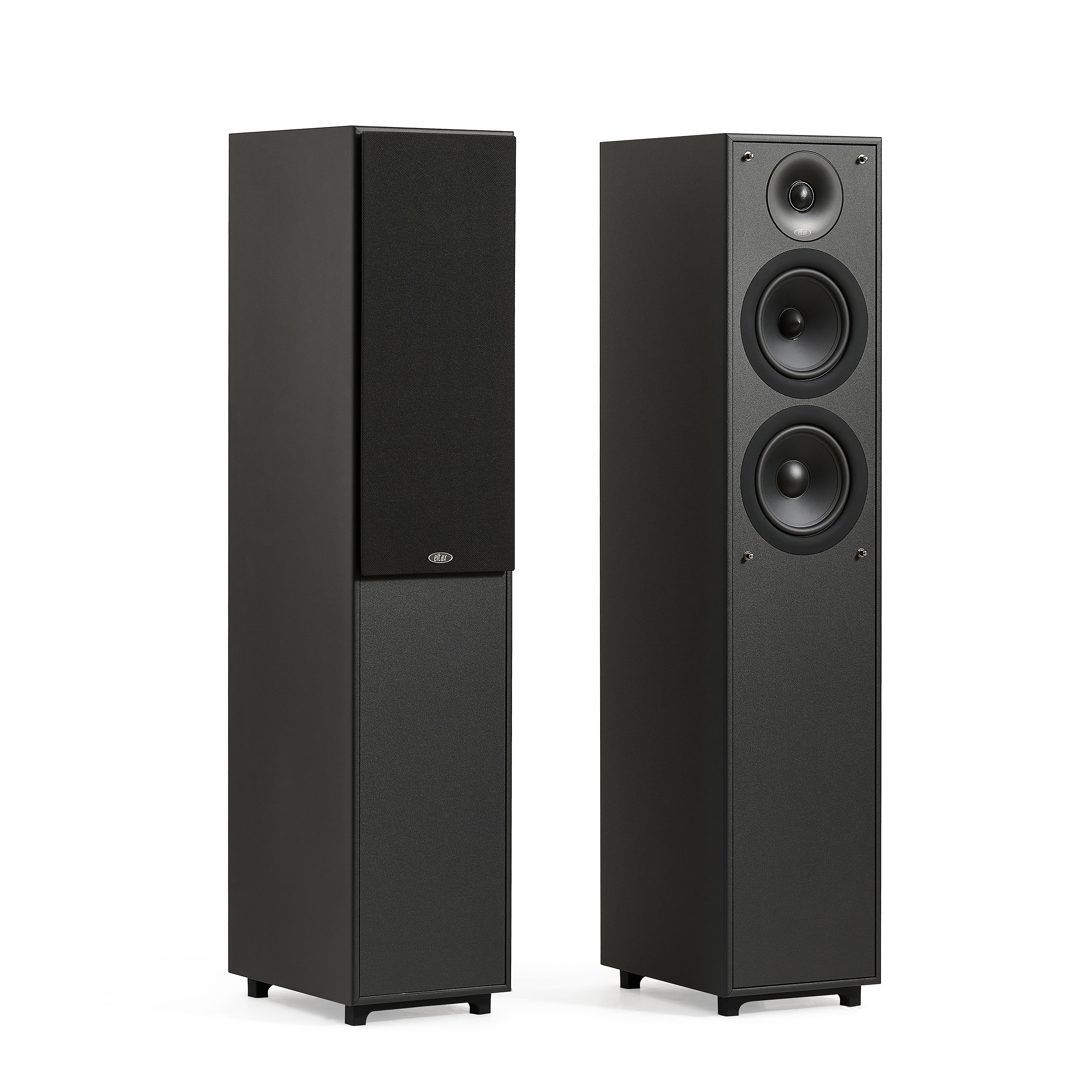

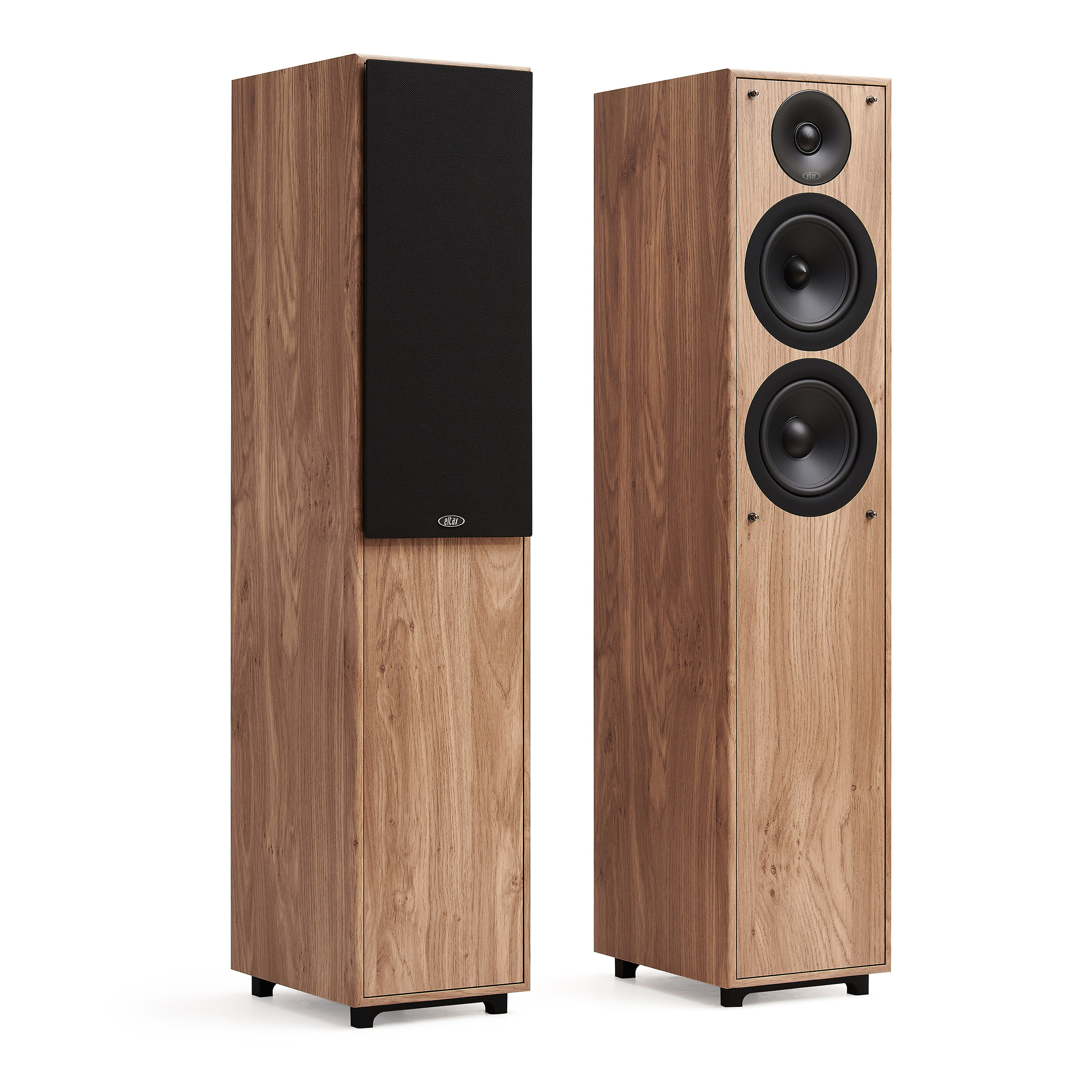

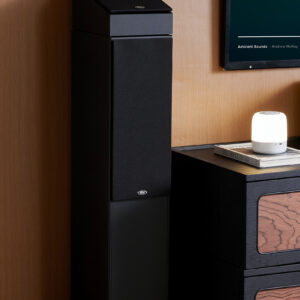

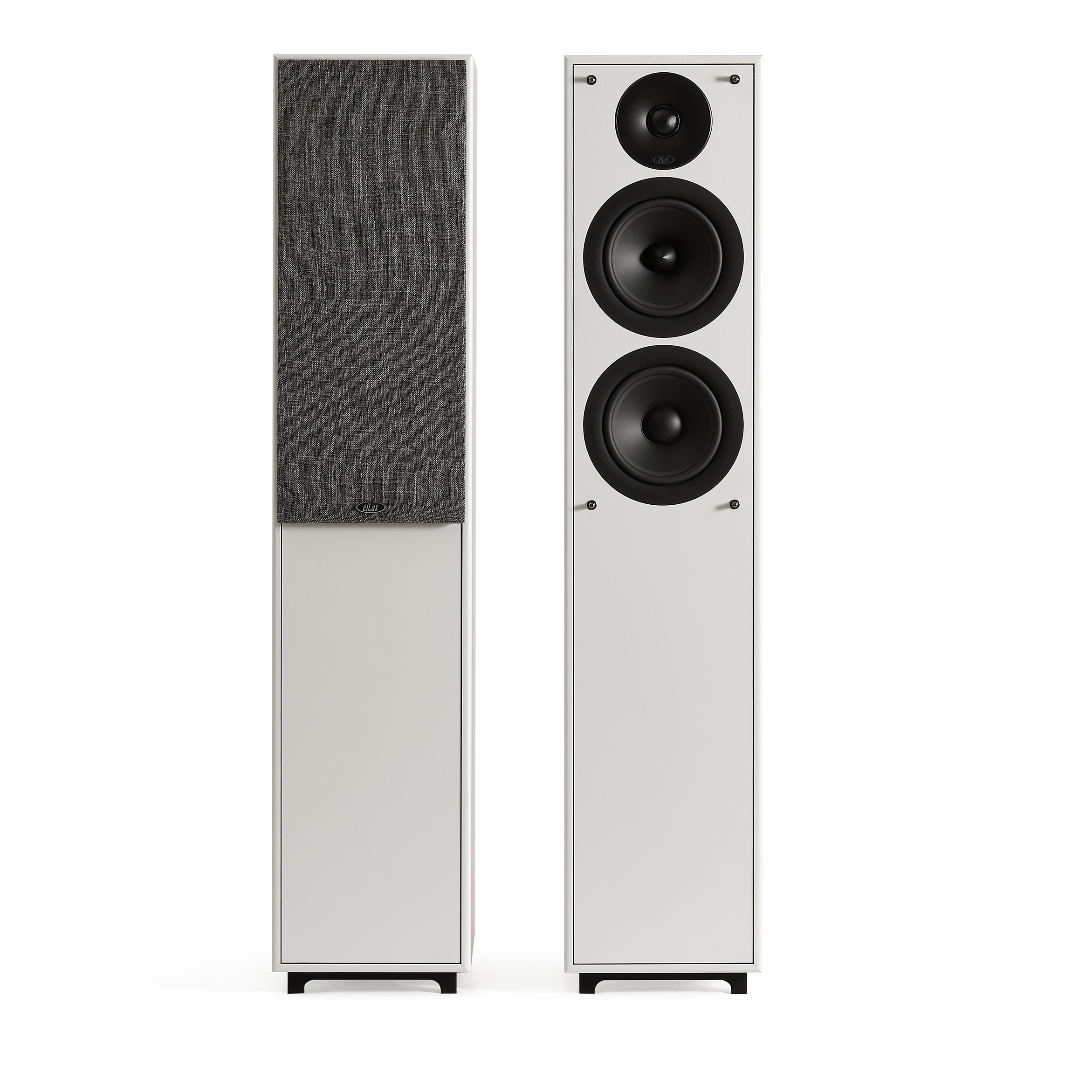

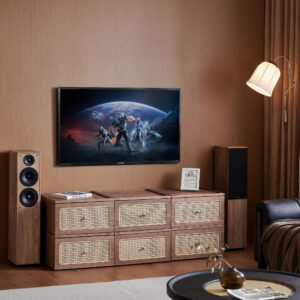

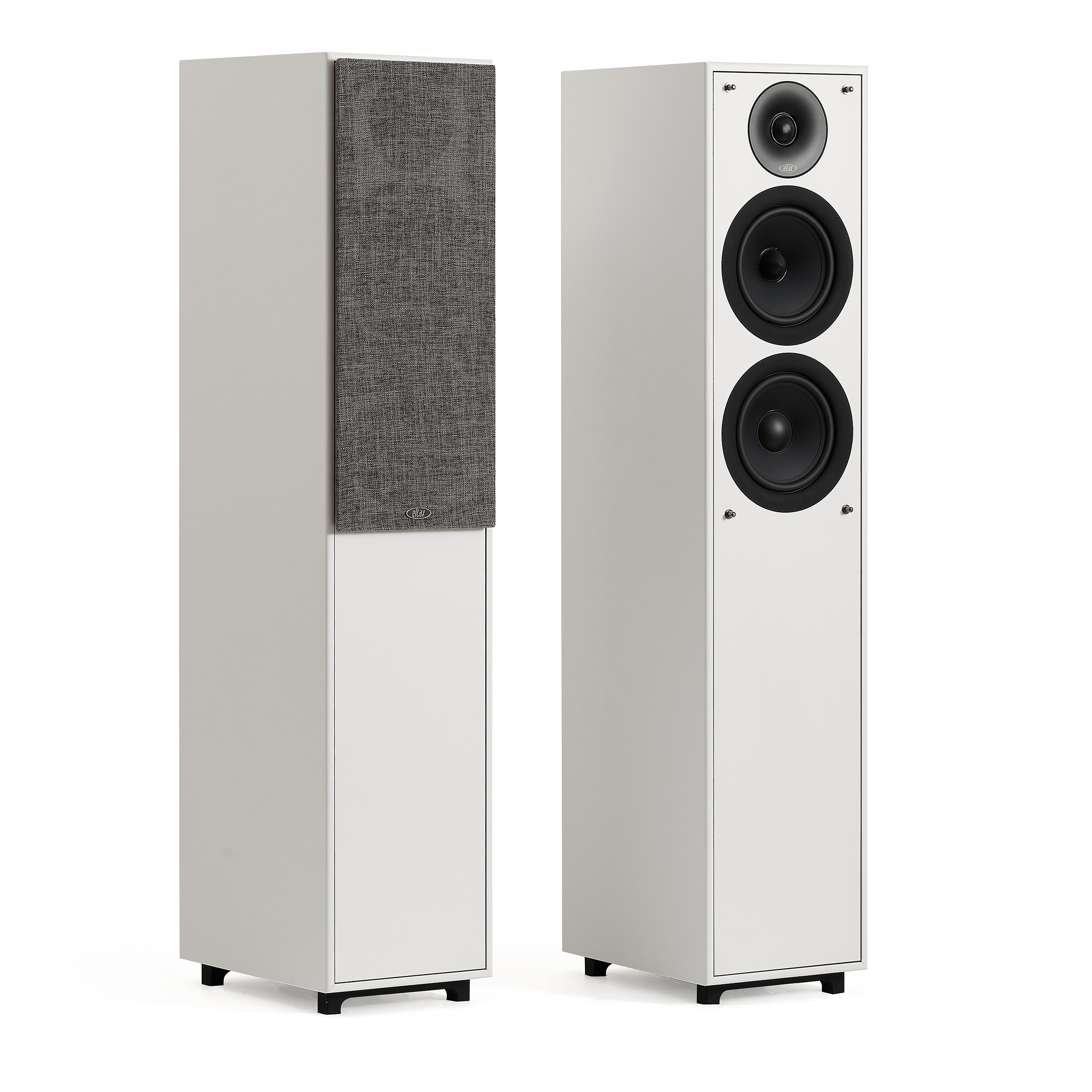

Eltax – Monitor IX NEO

FLOORSTANDING SPEAKER – 2.5-WAY BASS-REFLEX

MAIN SPECIFICATIONS
Enclosure type: Floorstanding, 2.5-way
Acoustic loading: Bass-reflex with down-firing port, flared at the ends
Port tuning frequency: 37 Hz

AUDIO PERFORMANCE
Frequency response: 45 – 22,000 Hz
Sensitivity: 90 dB / 1 W / 1 m
Nominal impedance: 6 – 8 Ohms (Zmin 4.7 Ohms @ 170 Hz)
Power handling: 100 W RMS / 170 W Peak

COMPONENTS AND CROSSOVER

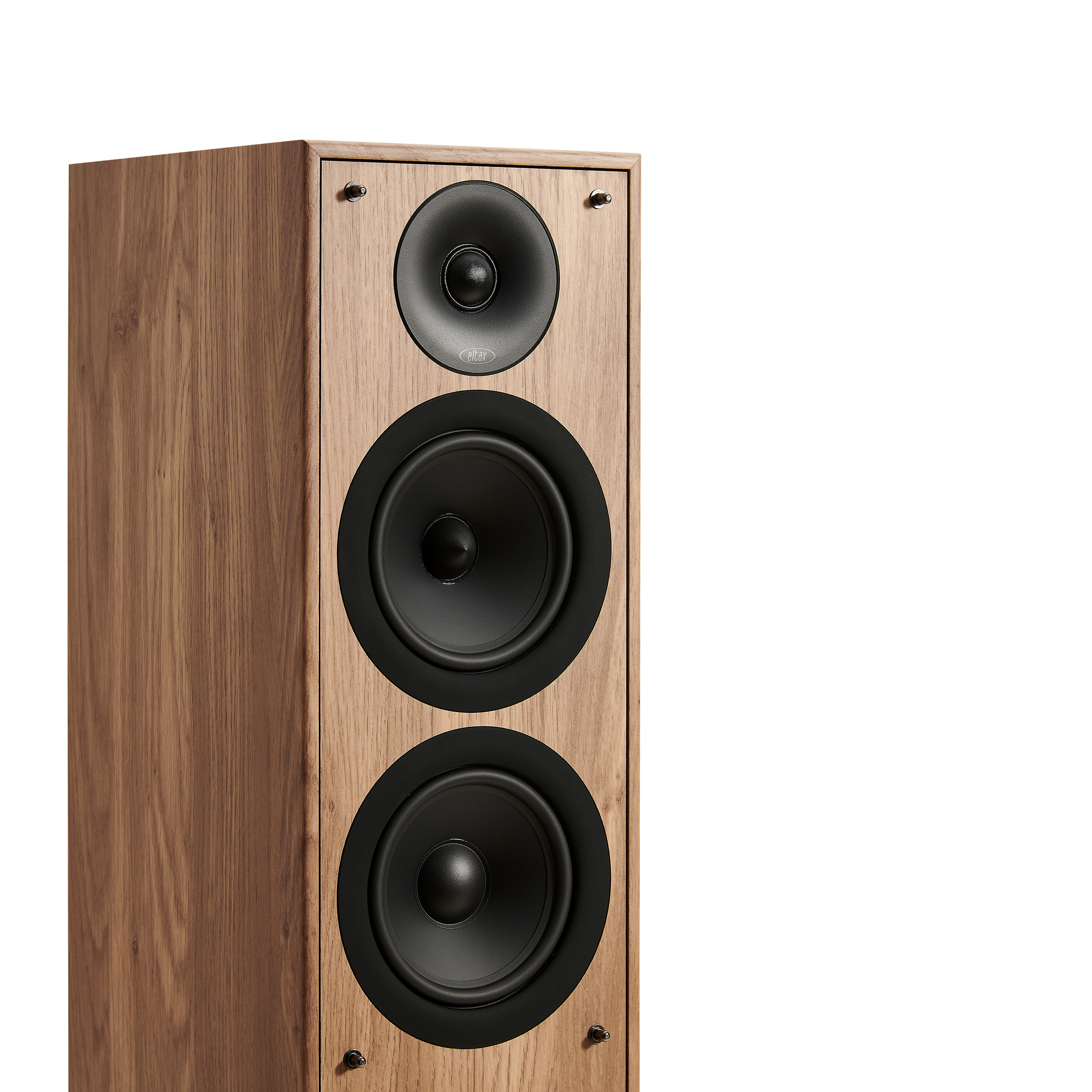

Tweeter: 25 mm dome
Mid-bass: 2 x 130 mm coated cellulose pulp cone,
equipped with a polypropylene phase plug
Crossover filter – Fc: 340 & 3000 Hz – 12 dB / 12 dB / 12 dB
Terminal block: Single-wiring

Physical Data
Dimensions: W 195 x H 925 x D 268 mm (279 mm with
grille)
Weight: 12.9 kg / piece
