NETIO is a Czech producer of networked power sockets which can be controlled over LAN & WiFi and are used in residential, commercial and industrial applications.

1) Remote control & Restarting
Use NETIO Cloud, NETIO Mobile2 app via LAN / cloud or just device web interface, Scheduler or WatchDog functions. Switch the power remotely On/Off or Restart.

2) Power Analysis
NETIO will help you to analyse power data from your electrical appliances.
You can detect device failures, count periodic cycles, detect inactivity etc…
Local or Cloud analytics, AN42 tool, Condition & Rules (PAB – Power Analyze Blocks) in device

3) AV Drivers / Digital Signage
Easy to use drivers helping seamless integration with various Audio/Video systems.
Crestron, BrightSign, RTI, Kramer, Neets, Control4, ELAN, Domotz etc

4) Ready for integration (M2M API – Open API)
All NETIO products are easy to use with 3rd party SW, HW or services.

Each NETIO device power output (relay) can be controlled from several sources:

1) From the device’s web (Admin and multiple User log-in possible)

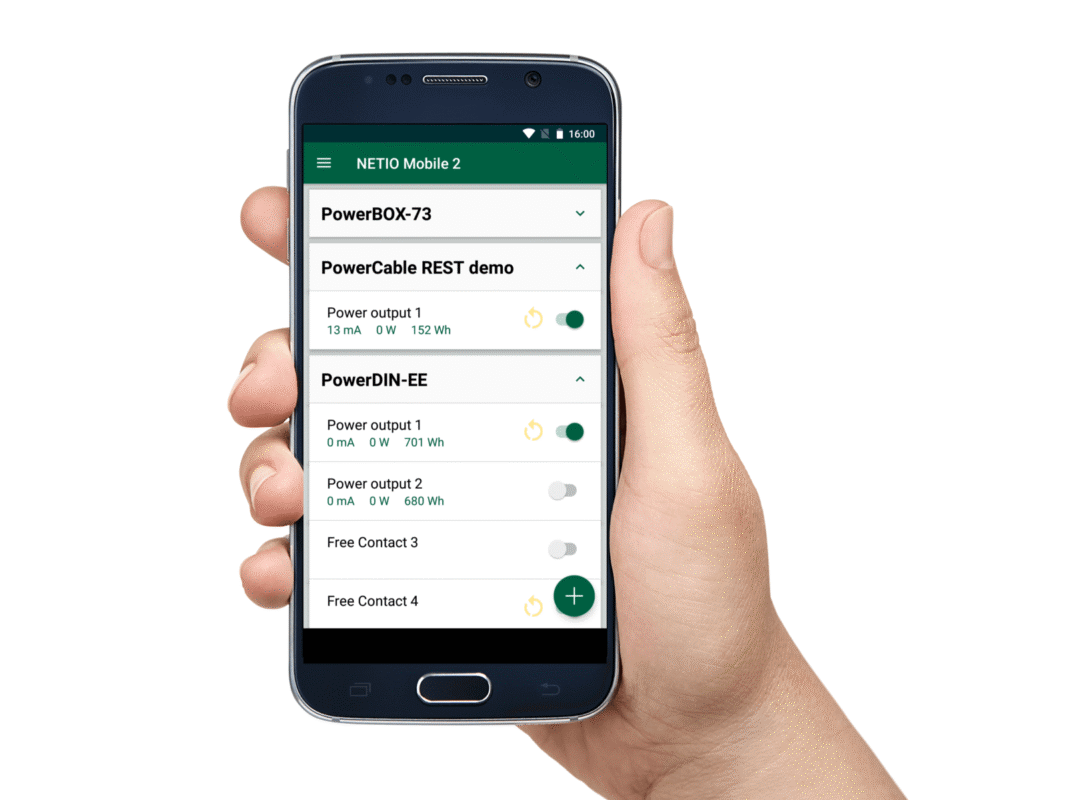

2) Using the NETIO Mobile2 on LAN (Mobile App)

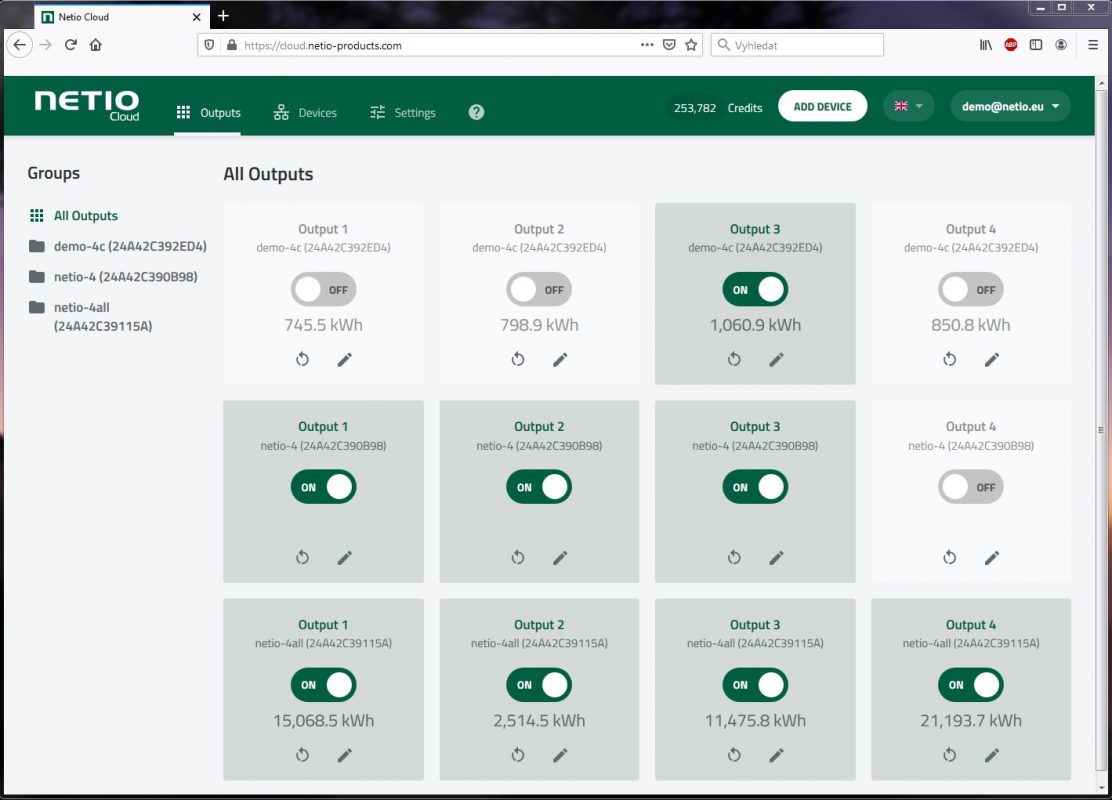

3) Using NETIO Cloud service from anywhere (Welcome credit for free (approx 2-3 year’s usage) then 5€ / year / device)

4) Using the NETIO Mobile2 (NETIO Cloud user account)

5) Using AV drivers you can control Outputs from many Audio Video SW (Crestron, Control4, Kramer, BrightSign, …

6) Using built-in Week-Scheduler function you can define several On/Off intervals per each output. It requires time NTP synchronization.

7) With built-in PING WatchDog function, you can restart (by power output) any LAN device when not responding to PINGs from NETIO PDU (Device frozen / sleeping / in IDLE mode).

8) With built-in Power consumption WatchDog function you can restart (by power output) any device powered from metered NETIO PDU output. Device frozen / sleeping / IDLE mode is detected by power consumption drop for pre-set time.

9) Each DI input on the NETIO device can be assigned by Rules to Switch On/Off/Toggle any power output(s) on the same device.

10) There are several Open APIs (protocols) to control outputs / meter power consumption in M2M applications: JSON over HTTP, XML, SNMP, Modbus/TCP, MQTT, URL-API (http get), and others.

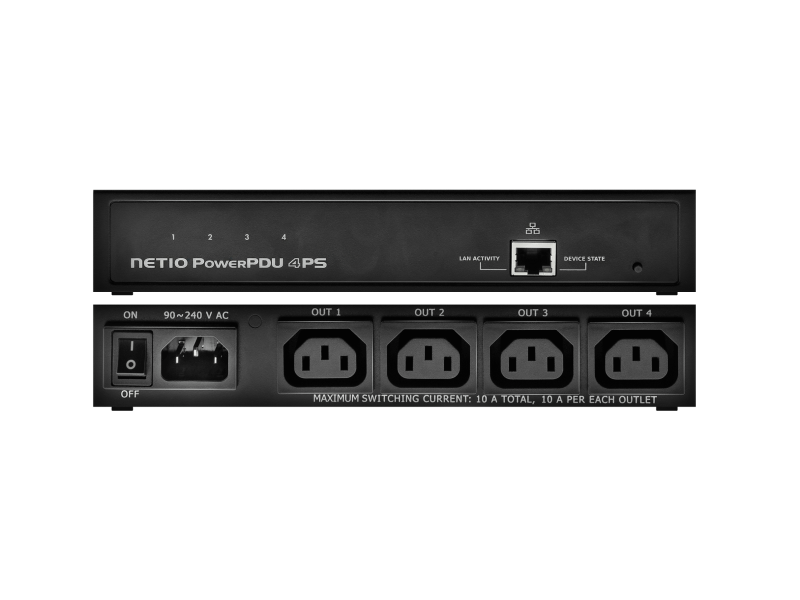

PowerPDU 4PS/ 4KS

NETIO PowerPDU 4PS is a smart PDU (Power Distribution Unit) with four power outlets (4x IEC-320 C13). Each output can be switched on/off individually.

NETIO PowerPDU 4KS is a smart PDU (Power Distribution Unit) with 4 metered & switched power outputs (4x IEC-320 C13) and 1x DI (Digital Input). PDU measures power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off each power output individually. The 4KS local Ping & Power WatchDog and Scheduler functions.

Both items can be mounted in racks – horizontally, vertically, or as a 1U device.

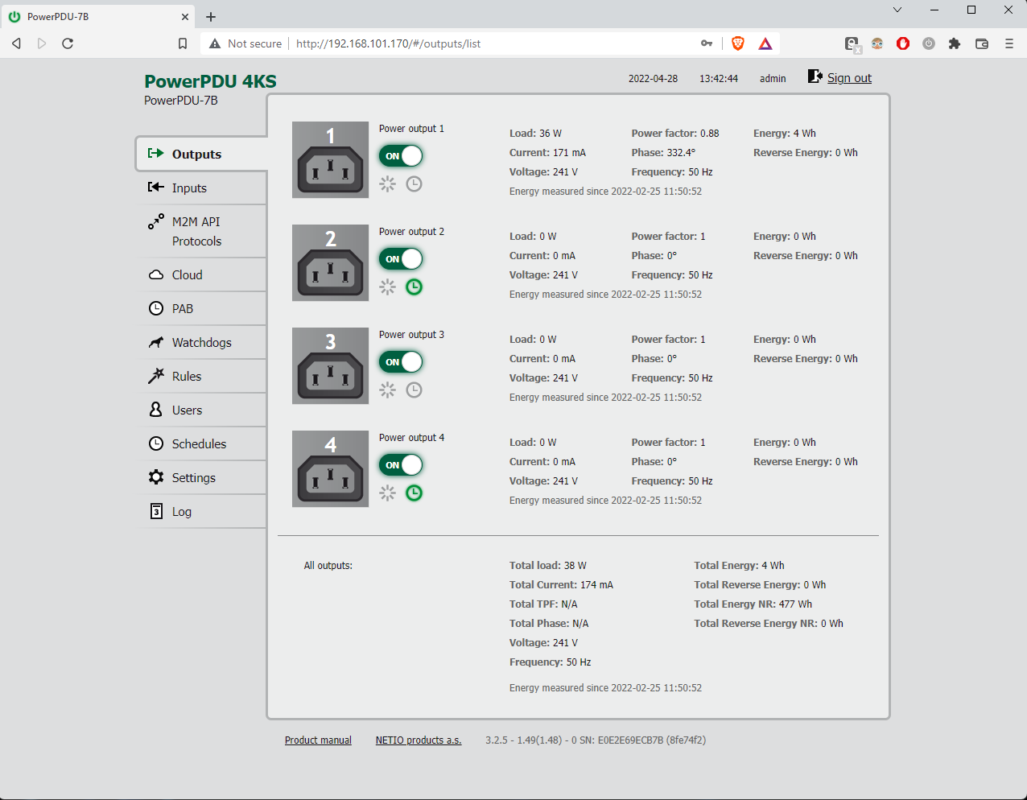

They can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as CRESTRON, Control4, RTI etc

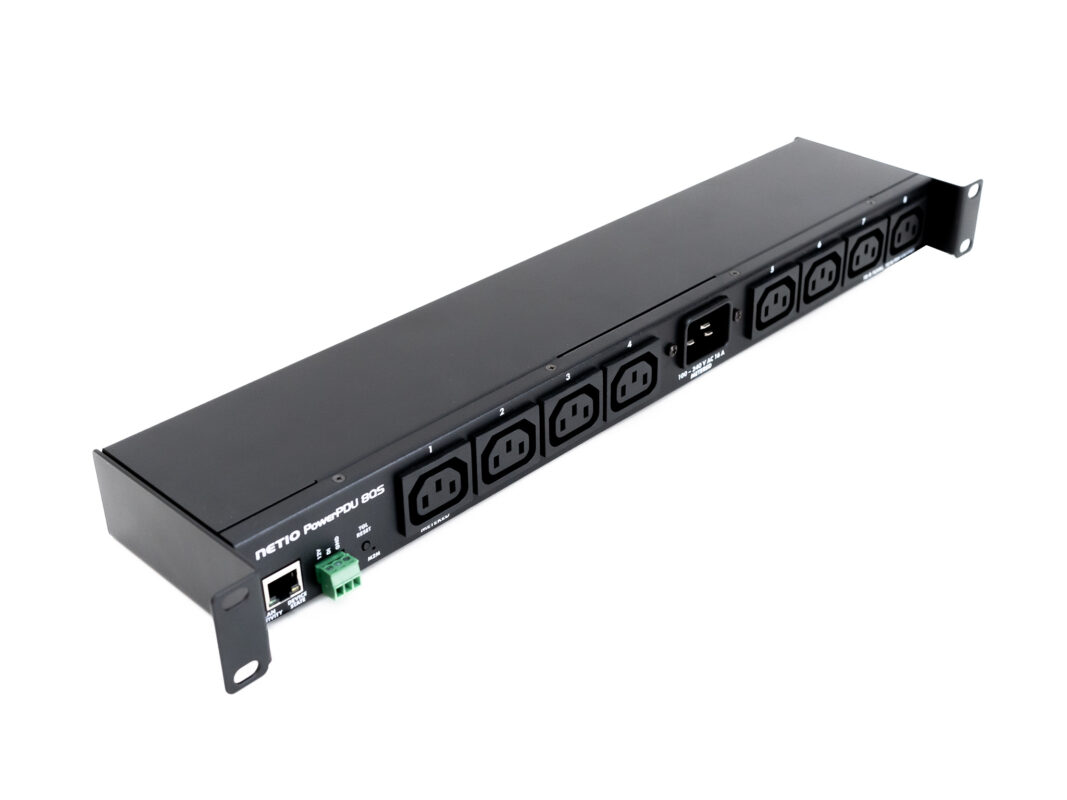

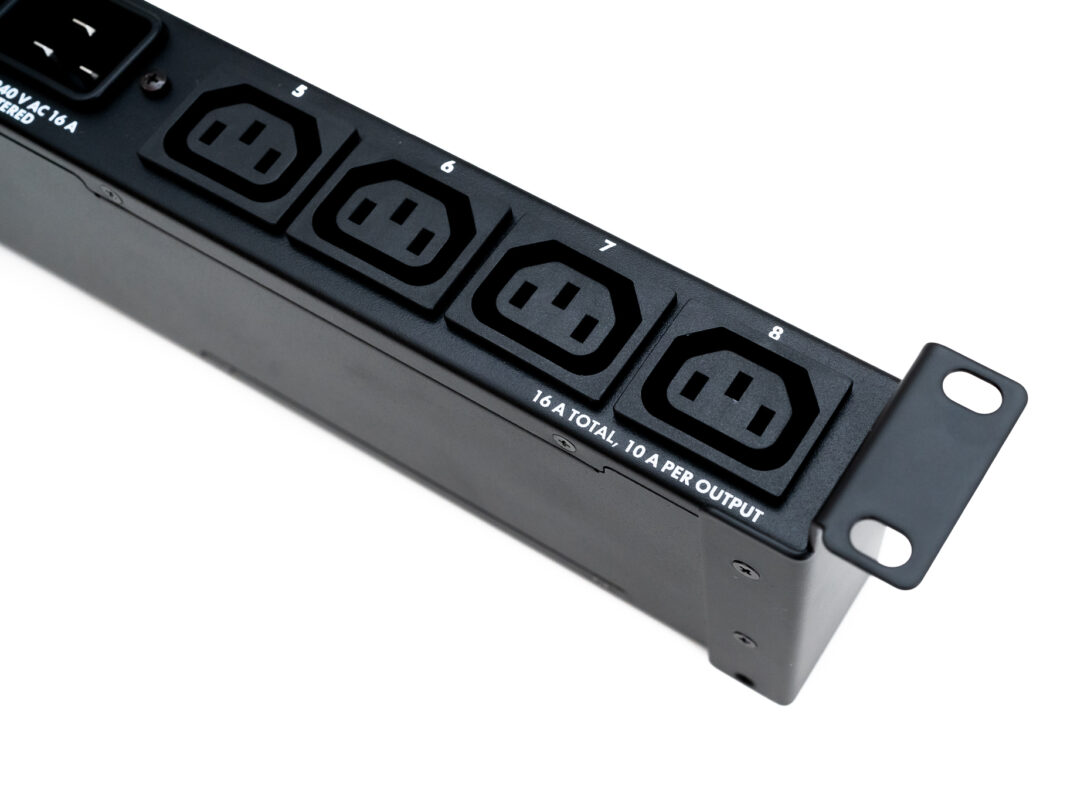

NETIO PowerPDU 8QS is a PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13) controlled and metered over a LAN. It fits into a 19” cabinet (1U). Each output can be switched on/off individually. PowerPDU 8QS supports two channels for electrical measurements: the PDU as a whole (all outputs combined), and the first output separately (All Outputs + 1). A digital input (DI) can be used to control the outputs or count S0 pulses (electricity meter output).

With the 8KS version each output can switched on/off and measured individually via LAN or the NETIO Cloud.

Using the external T1 temperature sensor with either unit the thermostat feature can be activated for additional cooling in case of too high a temperature.

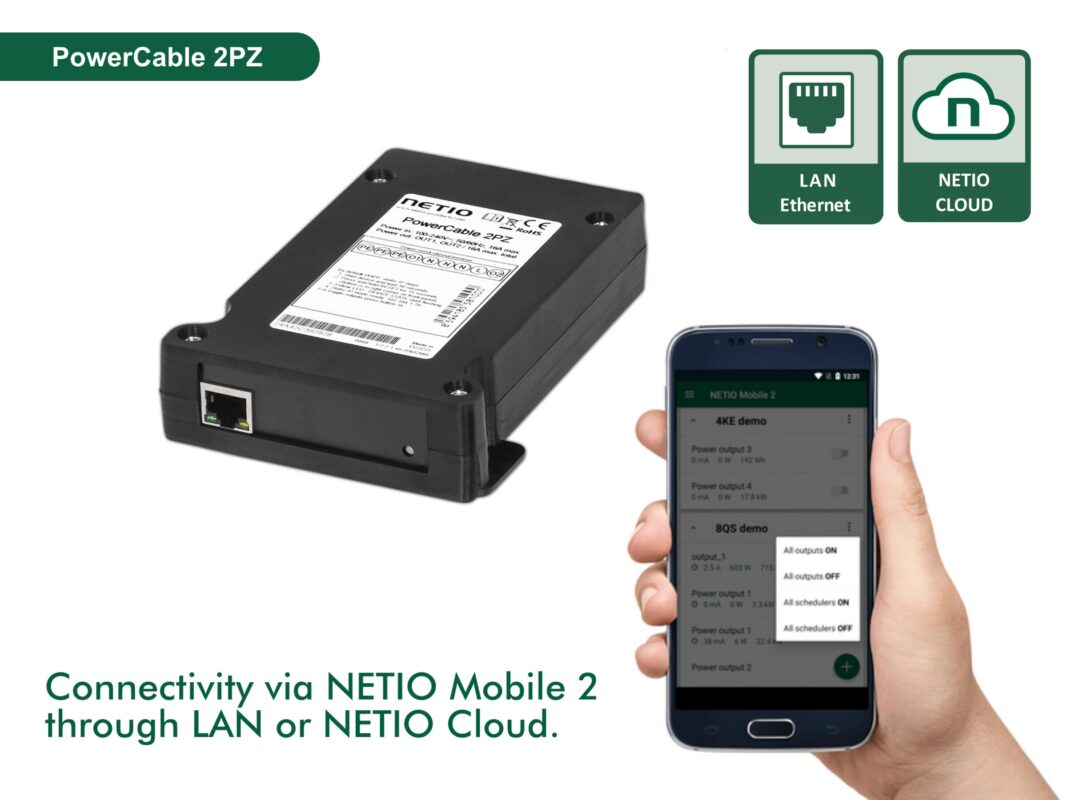

NETIO PowerCable 2PZ is flat PDU (Power Distribution Unit) with  LAN connectivity using RJ45 (Ethernet) or WiFi. Both power outputs can be individually switched On/Off (restarted) on the device website, from Mobile App or NETIO Cloud (web service).

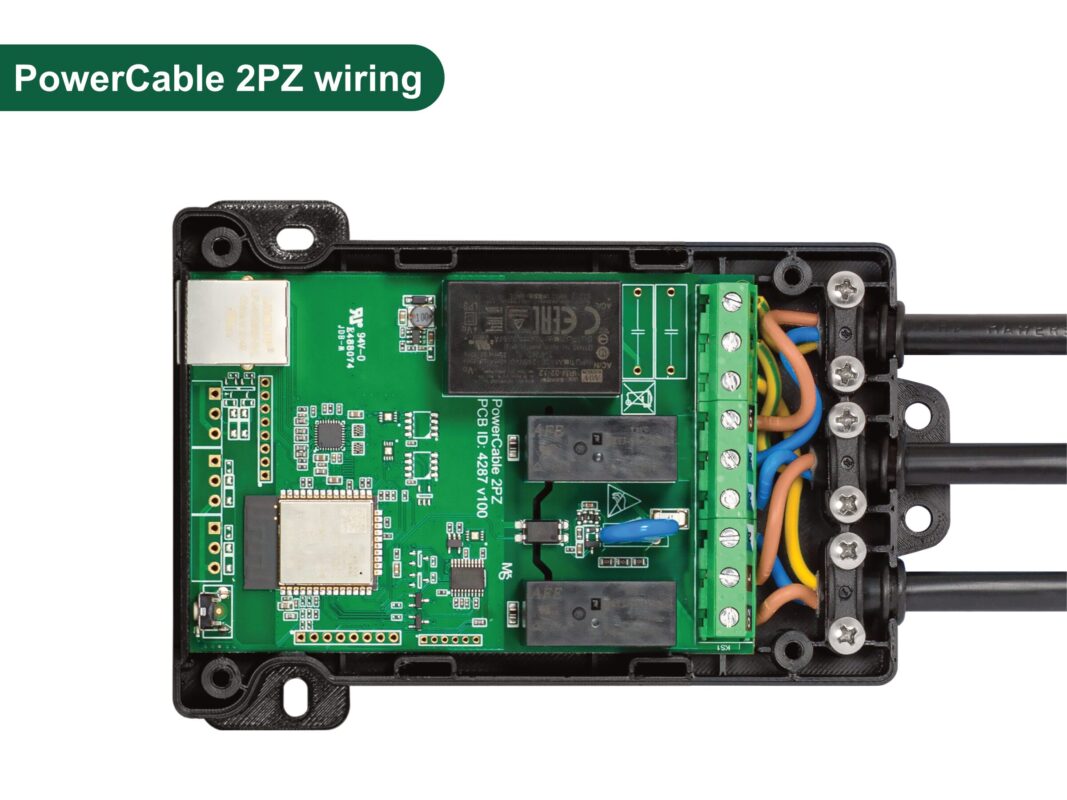

Called a “flat PDU” because can it be installed behind a TV, under a double ceiling or a similar limited space. PowerCable 2PZ is delivered without power cables; user  installs power input and 1 or 2 power output cables to the terminal block inside plastic housing.

The PowerCable 2KZ can switch & meter 2 power outputs, and the 2x DI (Digital Input) can read state of external detectors (door contact, relay outputs). Both power outputs individually measure power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off (ZCS). Each output can be switched manually over the web, the NETIO Cloud service, or with a Mobile App (Locally or via NETIO Cloud).

DI (Digital Inputs) with 4-byte pulse counters can be used to connect momentary switches (dry contact) or S0 outputs of electricity, water or similar meters.

Both the 2PZ and 2KZ  PDU support Ping WatchDog and week-based Scheduler feature.
