Eltax – Monitor Centre NEO

CENTER SPEAKER – 2-WAY – SEALED

MAIN SPECIFICATIONS
Enclosure type: Center – 2-way sealed

AUDIO PERFORMANCE
Frequency response: 52 – 22,000 Hz
Sensitivity: 90 dB / 1 W / 1 m
Nominal impedance: 6 – 8 Ohms (Zmin 4.9 Ohms @ 220 Hz)
Power handling: 100 W RMS / 170 W Peak

COMPONENTS AND CROSSOVER
Tweeter: 25 mm dome
Mid-bass: 2 x 130 mm coated cellulose pulp cone, equipped with a polypropylene phase plug
Crossover filter – Fc: 3200 Hz – 12 dB / 12 dB

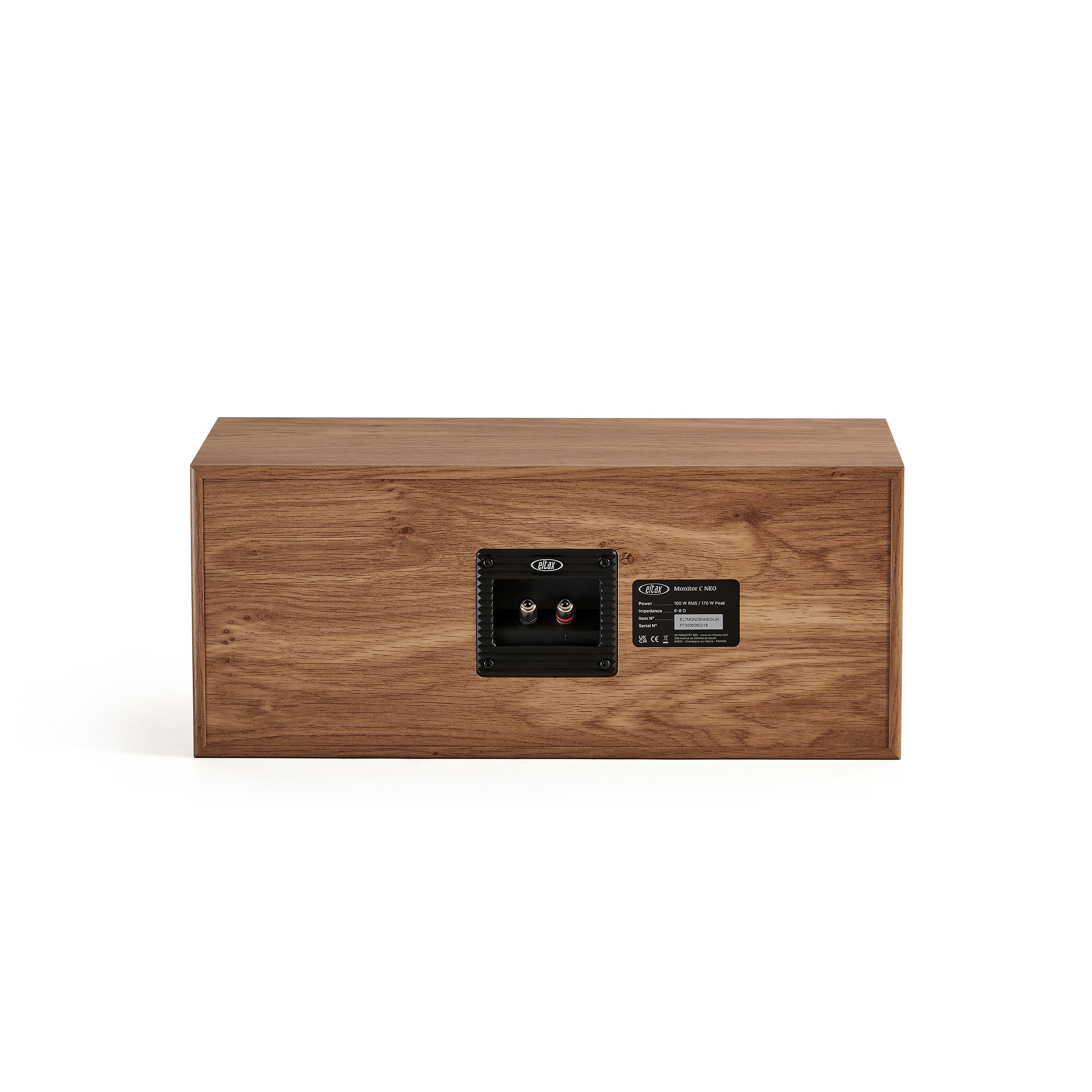

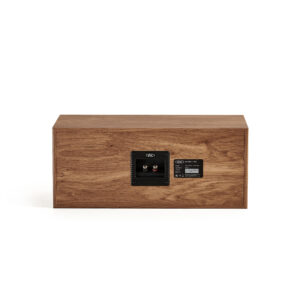

Terminal block: Single-wiring

Dimensions: W 465 x H 195 x D 218 mm (229 mm with grille)
Weight: 7.2 kg / Unit
