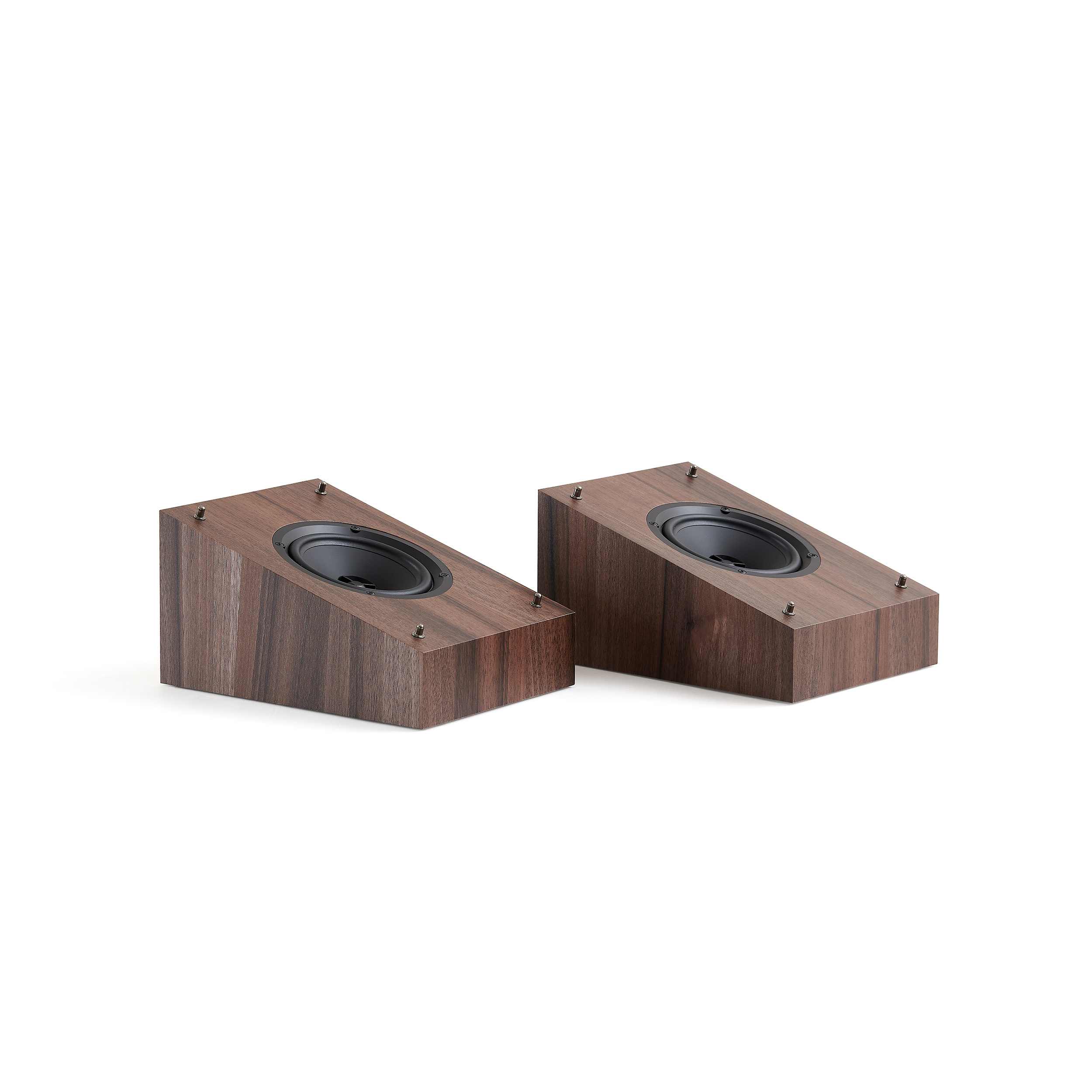

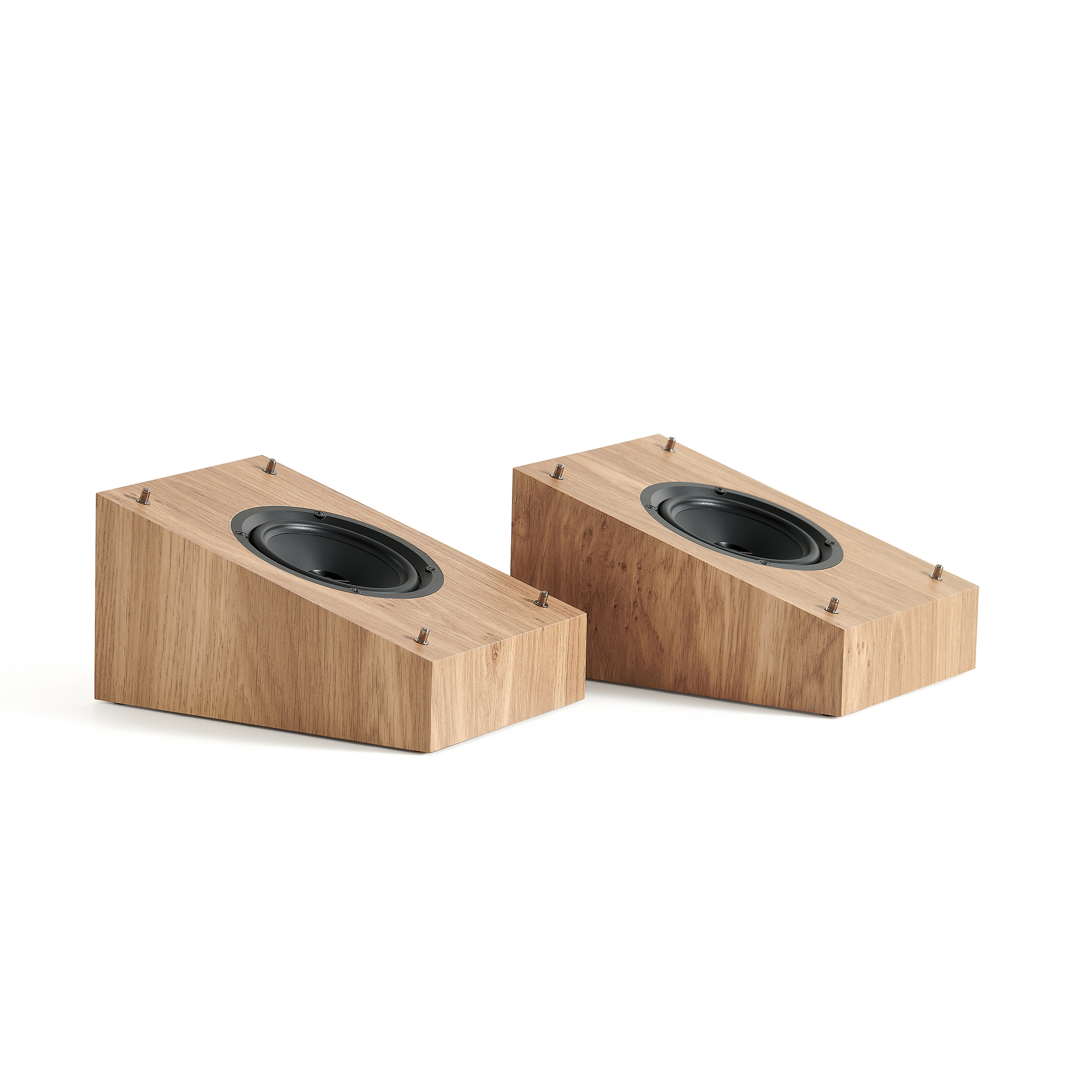

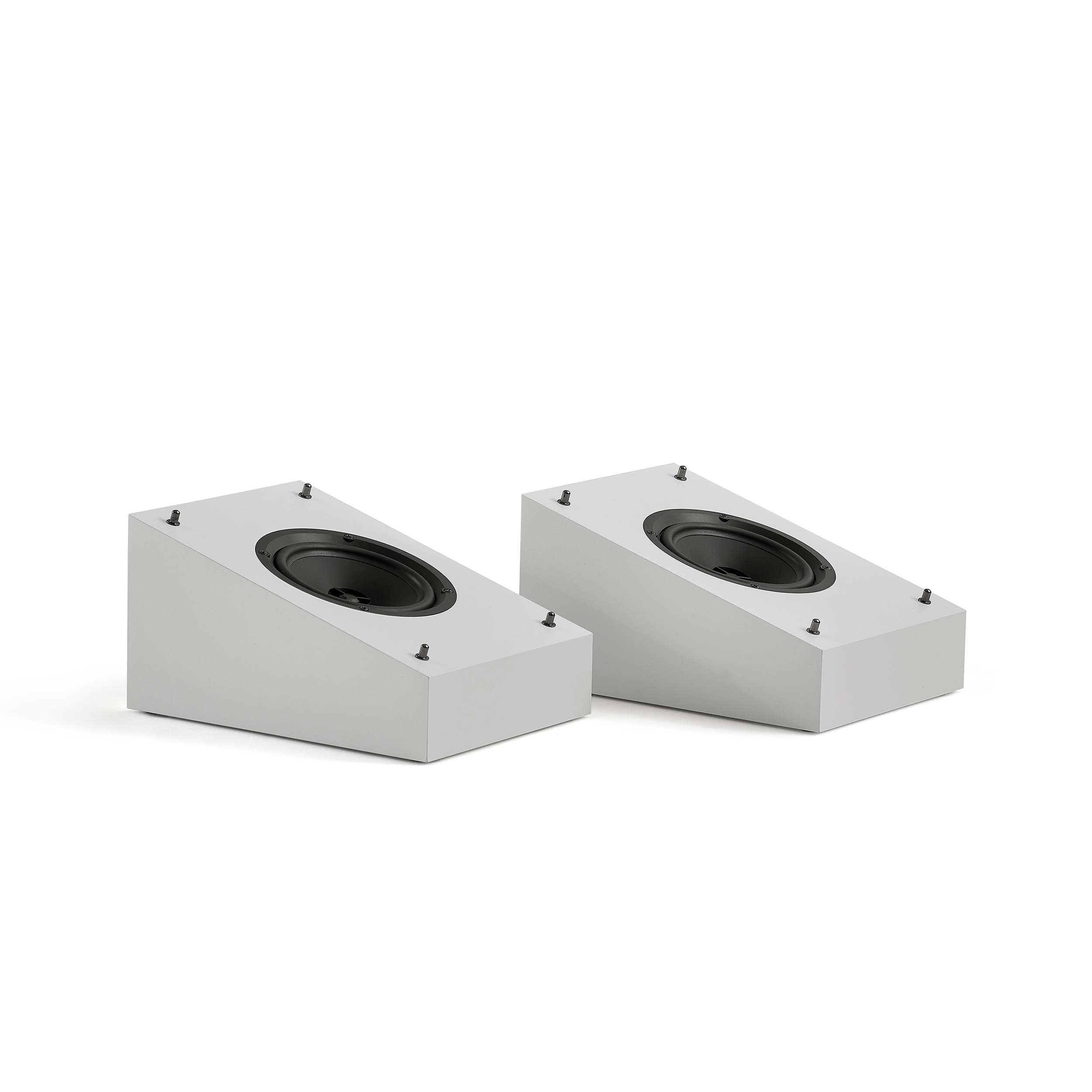

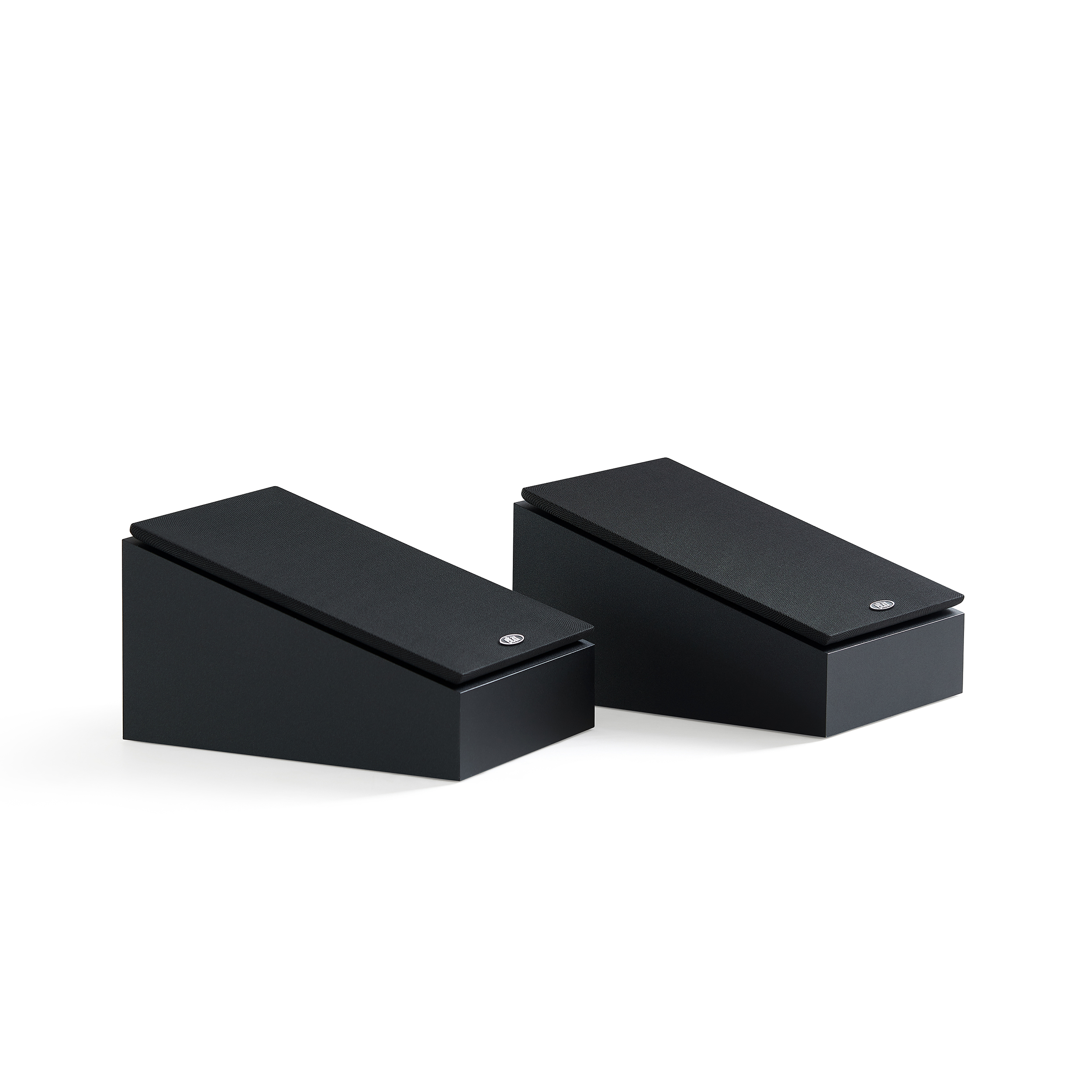

Eltax – Monitor Atmos NEO

ATMOS SPEAKER – 2-WAY – SEALED

MAIN SPECIFICATIONS
Type: Dolby Atmos certified speaker – 2-way – Sealed

AUDIO PERFORMANCE
Frequency response: 70 Hz – 20 kHz (±4 dB)
Sensitivity: 88 dB (1 W / 1 m)
Nominal impedance: 6 Ω
Power handling: 50 W RMS / 80 W Peak

COMPONENTS AND CROSSOVER
Coaxial Driver
Tweeter: 19 mm dome
Mid-bass: 120 mm coated cellulose pulp cone
Crossover filter – Fc: 3600 Hz – 18 dB / 12 dB + Dolby Atmos network
Terminal block: Single-wiring

Dimensions: W 195 x H 137 mm (148 mm with grille) x D 258 mm
Weight: 3 kg / Unit
