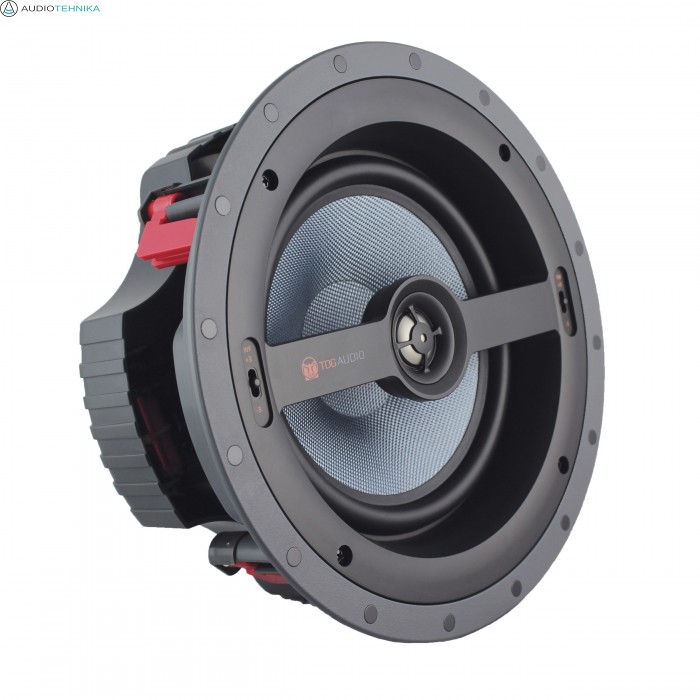

TDG Audio – NFC83

2 Way Reference Design In-ceiling
8″ Kevlar Trueform Woofer
1″ Titanium HDAlloy Pivoting Tweeter
+/- 3db Tweeter & Bass Settings
Smooth Visual Flangeless System
5/175 WPC Power handling
89db SPL
Frequency Response 36Hz – 20kHz
PRX Poly Resin CrossPoint Molds for increased rigidity
PRX Dog legs
Never Rust? Grills firmly attached with Neodymium Magnets
Total Diameter with Grill: 11″ (285mm)
Mounting Depth: 4″ (112mm)
Cut Out Dimensions: 9″ (248mm)
Pre-Construction: Use Vanguard PCBC-8 or MSE-8
LIFETIME WARRANTY
