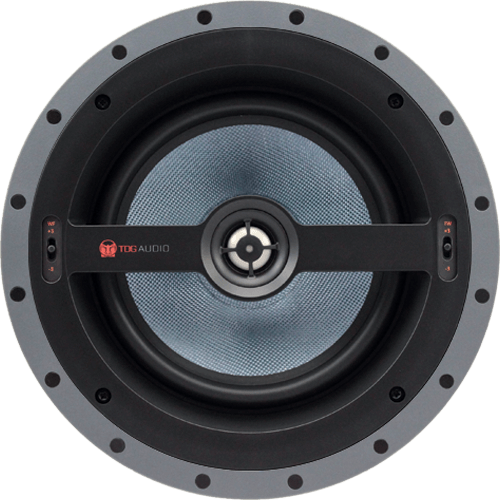

TDG Audio – NFC63A

2 Way Reference Design In-ceiling
Angled 6″ Kevlar Trueform Woofer
1″ Titanium HD Alloy Pivoting Tweeter
+/- 3db Tweeter & Bass Settings
Smooth Visual Flangeless System

PRX Poly Resin CrossPoint Molds for increased rigidity
PRX Dog legs 5/150 WPC Power handling
89db SPL, Frequency Response 45Hz – 20kHz
Never Rust Grills firmly attached with Neodymium Magnets
Total Diameter with Grill: 9 11/16″ (246mm)
Mounting Depth: 4 1/8″ (105mm)
Cut Out Dimensions: 8″ (210mm)
Pre-Construction: Use Vanguard PCBC-6 or MSE-6
LIFETIME WARRANTY
