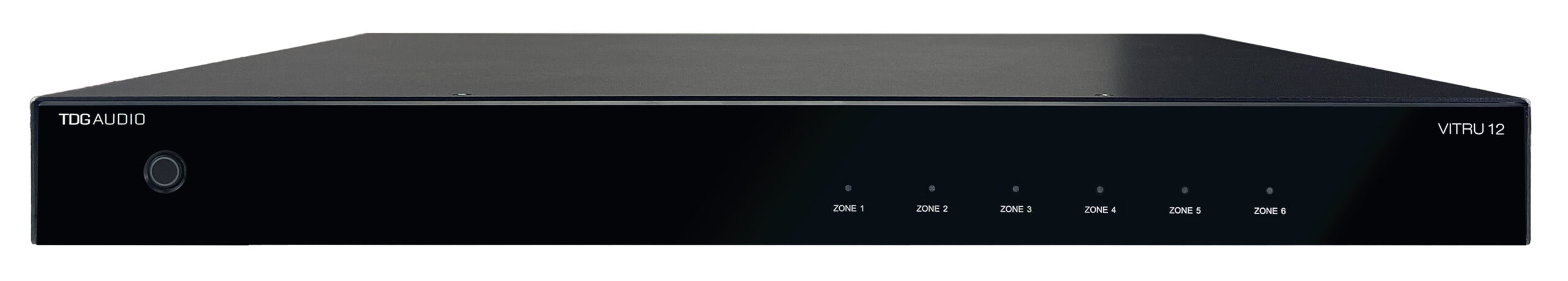

TDG Audio – VITRU-12
MSRP: £1,800.00
Login to view prices
12 Channel x 100 Watt Multi Channel Amplifier
12 Channel x 100 Watt Multi Channel Amplifier
Key Features:
- 12 Channels (6 Zone) 1U Rack Size

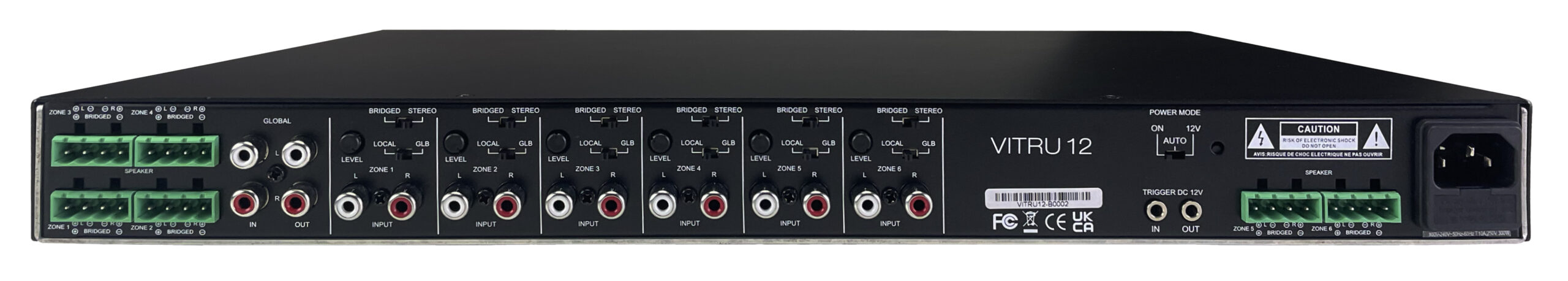

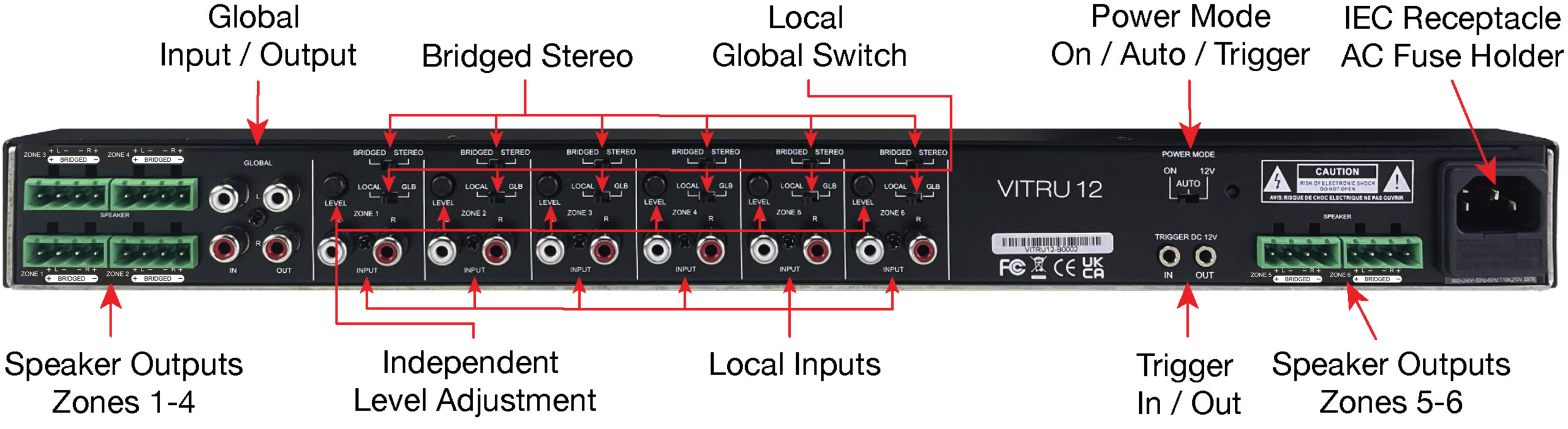

- Inputs: 12 RCA inputs and 2 Global RCA inputs unbalanced
- Outputs: 2 Global RCA outputs unbalanced
- 6 x 4-pin Phoenix Speaker Output Terminals
- Stereo/Bridge Modes
- Standby Options: Default standby automatic mode, and 12V
- Trigger for manual on/off control
- Protection status LED indicators

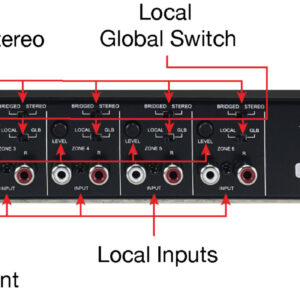

- Independent attenuation knob for each zone
- Simple Global/Local source selection switch
- Rack Mountable: Rack Ear Brackets included for
- Installation in a 19″ rack
- Active Cooling: Designed for quiet operation as it is
- Actively cooled, eliminating disturbing noise
- SMPS with Power Factor Correction
- Power: 100V/240V Switchable 50Hz/60Hz
- Certifications: CE, EMC, LVD, ERP, UKCA
- LIMITED 3-YEAR WARRANTY
Mechanical Specs:
- Unit Dimensions (W x H x D): 443mm x 44mm x 330mm
- Weight: 6.0Kg
Acoustic Specs:
- 100 watts x 12 channels into 4 ohms
- 50 watts x 12 channels into 8 ohms
- 200 watts x 6 channels into 8 ohms (Bridged)
- Frequency Response: 20Hz to 20KHz +/- 1dB
- Sensitivity: 1Vrms
